GTK4 DropDown with .NET

In this post I will make use of GTK4 DropDown. DropDown is used to display selected item from a list of items.

Let’s start by installing/updating the dotnet new [GTK4 .NET Project Template] (https://github.com/kashif-code-samples/gtk4-dotnet-template).

After making sure we have the new project template available in dotnet new list. We can proceed to create our project.

Let’s create a directory for the project and create project structure using following commands

mkdir gtk4-dotnet-drop-down
cd gtk4-dotnet-drop-down
dotnet new gtk4-app -p:n DropDown

Now we can run our application by executing:

dotnet run --project DropDown/DropDown.csproj

At this moment it would display a window with Hello, world!.

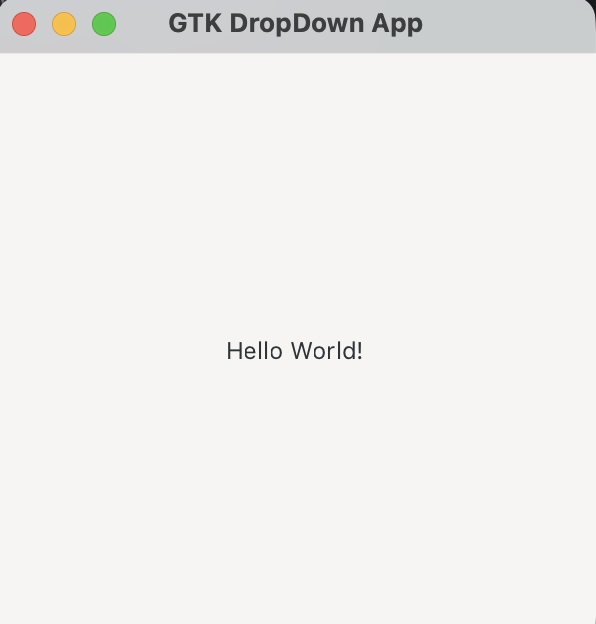

Hello World Window

Simple DropDown

Let’s start with simple DropDown. First we need to add a referce of GirCore.GObject-2.0.Integration to our sample project. We need this to use GObject.SubClass attribute that would generate boilerplate code for our inherited window.

Next lets add a class for our window.

[GObject.Subclass<Gtk.ApplicationWindow>]
public partial class WithStringList
{
    partial void Initialize()
    {
        // initialize all members
    }
}

With our window class added, let’s update Program.cs to show the new window. Only showing new code for brevity.

application.OnActivate += (sender, args) =>
{
    var buttonShowWithStringList = CreateButton("With StringList");
    buttonShowWithStringList.OnClicked += (_, _) => new WithStringList().Show();
    ...

    var gtkBox = Gtk.Box.New(Gtk.Orientation.Vertical, 0);
    gtkBox.Append(buttonShowWithStringList);

    ...

    window.Child = gtkBox;
}

static Gtk.Button CreateButton(string label)
{
    var button = Gtk.Button.New();
    button.Label = label;
    button.SetMarginTop(12);
    button.SetMarginBottom(12);
    button.SetMarginStart(12);
    button.SetMarginEnd(12);
    return button;
}

Next let’s add and a label and a dropdown in WithStringList

    private Gtk.Label _labelSelected;
    private Gtk.DropDown _dropDown;

And then update the Initialize method to initialize label and dropdown.

    partial void Initialize()
    {
        Title = "DropDown With StringList";
        SetDefaultSize(300, 300);

        _labelSelected = Gtk.Label.New("Selected: 1 minute");
        _labelSelected.SetMarginTop(12);
        _labelSelected.SetMarginBottom(12);
        _labelSelected.SetMarginStart(12);
        _labelSelected.SetMarginEnd(12);

        var stringList = Gtk.StringList.New(["1 minute", "2 minutes", "5 minutes", "15 minutes", "30 minutes"]);
        _dropDown = new Gtk.DropDown();
        _dropDown.SetModel(stringList);
        _dropDown.SetSelected(0);
        _dropDown.SetMarginTop(12);
        _dropDown.SetMarginBottom(12);
        _dropDown.SetMarginStart(12);
        _dropDown.SetMarginEnd(12);

        _dropDown.OnNotify += (_, _) =>
        {
            var selectedItem = (Gtk.StringObject)_dropDown.SelectedItem!;
            var interval = selectedItem.GetString();
            _labelSelected.SetLabel($"Selected: {interval}");
        };

        var gtkBox = Gtk.Box.New(Gtk.Orientation.Vertical, 0);
        gtkBox.Append(_labelSelected);
        gtkBox.Append(_dropDown);

        Child = gtkBox;
    }

Here interesting part is that we create a StringList with the values that will be displayed in the DropDown. Then we set the model of DropDown to the created StringList. DropDown knows how to work with StringList. Finally we setup selected property changed handler of our DropDown and set the selected value in the label.

Following screenshots show the initial, dropdown and selection for simple DropDown.

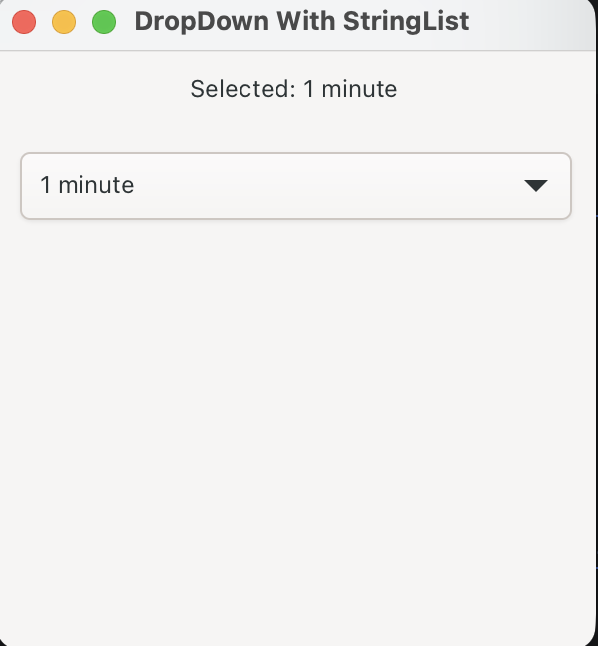

With StringList Initial

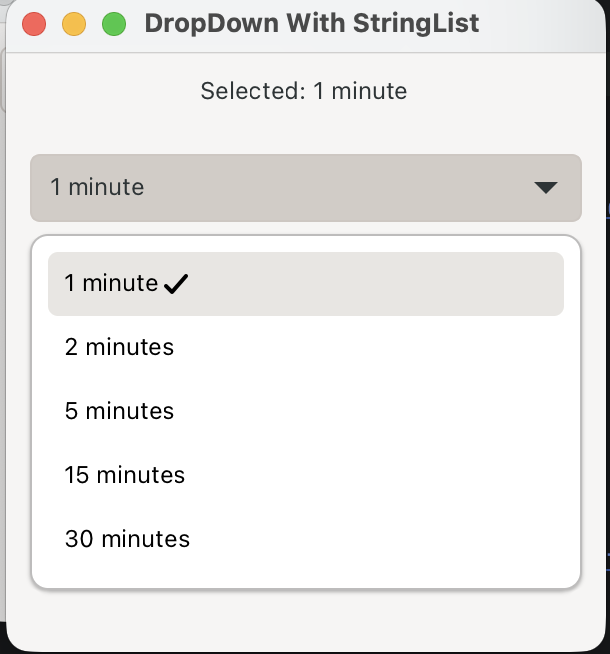

With StringList DropDown

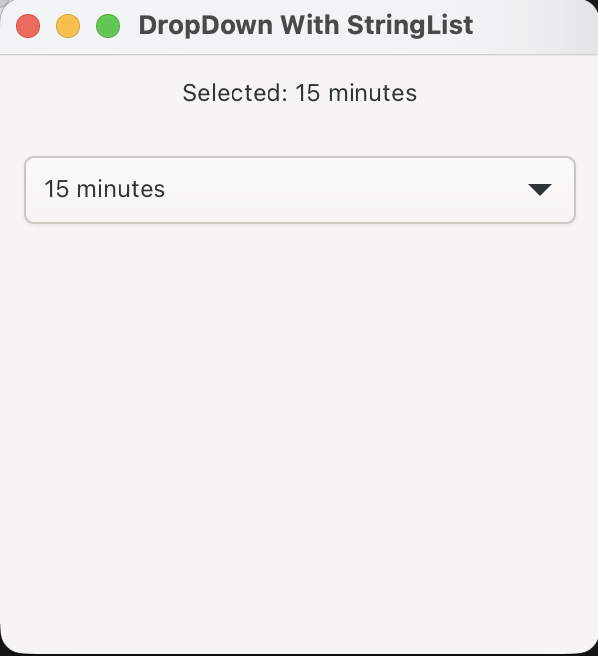

With StringList Selected

Complex DropDown

Let’s go through with a complex example, where we display a Title, Description and an image. There will be another tickbox next to the selected item.

First let’s add a custom object StringHolder to use in the model.

[GObject.Subclass<GObject.Object>]
public partial class StringHolder
{
    public StringHolder(string title, string icon, string description) : this()
    {
        Title = title;
        Icon = icon;
        Description = description;
    }

    public string Title { get; }
    public string Icon { get; }
    public string Description { get; }
}

We would setup 2 instances of Gtk.SignalListItemFactory, 1st to setup and bind drop down items and 2nd to setup list and bind dropdown items when item is selected.

        var selectedFactory = Gtk.SignalListItemFactory.New();
        selectedFactory.OnSetup += OnSetupSelectedItem;
        selectedFactory.OnBind += OnBindSelectedItem;
        _dropDown.SetFactory(selectedFactory);

        // Factory for presenting the items in the dropdown list.
        var listFactory = Gtk.SignalListItemFactory.New();
        listFactory.OnSetup += OnSetupListItem;
        listFactory.OnBind += OnBindListItem;
        _dropDown.SetListFactory(listFactory);

Then we create the Gio.ListStore and set the dropdown’s model.

        ...
        CreateModel();
        _dropDown.SetModel(_listStore);
        _dropDown.SetSelected(0);
        ...

    private void CreateModel()
    {
        _listStore = Gio.ListStore.New(StringHolder.GetGType());
        _listStore.Append(new StringHolder("Deskop", "user-desktop-symbolic", "Deskop Folder"));
        _listStore.Append(new StringHolder("Home", "user-home-symbolic", "Home Folder"));
        _listStore.Append(new StringHolder("Trash", "user-trash-symbolic", "Trash Folder"));
        _listStore.Append(new StringHolder("Videos", "folder-videos-symbolic", "Videos Folder"));
    }

For selected item, we only display an Image and Label and display Icon and Title property from the model.

    private static void OnSetupSelectedItem(Gtk.SignalListItemFactory factory, Gtk.SignalListItemFactory.SetupSignalArgs args)
    {
        var listItem = args.Object as Gtk.ListItem;
        var box = Gtk.Box.New(Gtk.Orientation.Horizontal, 10);
        box.Append(Gtk.Image.New());
        box.Append(Gtk.Label.New(""));
        listItem!.SetChild(box);
    }

    private static void OnBindSelectedItem(Gtk.SignalListItemFactory sender, Gtk.SignalListItemFactory.BindSignalArgs args)
    {
        var listItem = args.Object as Gtk.ListItem;
        var stringHolder = listItem!.GetItem() as StringHolder;
        if (stringHolder is null) return;

        var box = listItem.GetChild() as Gtk.Box;
        if (box is null) return;

        var image = box.GetFirstChild() as Gtk.Image;
        if (image is null) return;

        image.SetFromIconName(stringHolder.Icon);
        var label = image.GetNextSibling() as Gtk.Label;
        if (label is null) return;

        label.SetText(stringHolder.Title);
    }

For selected item however we also display Description and a tickbox image next to the selected item.

    private static void OnSetupListItem(Gtk.SignalListItemFactory factory, Gtk.SignalListItemFactory.SetupSignalArgs args)
    {
        var listItem = args.Object as Gtk.ListItem;

        var hbox = Gtk.Box.New(Gtk.Orientation.Horizontal, 10);
        var vbox = Gtk.Box.New(Gtk.Orientation.Vertical, 2);

        hbox.Append(Gtk.Image.New());
        hbox.Append(vbox);

        var lblTitle = Gtk.Label.New("");
        lblTitle.SetXalign(0);
        vbox.Append(lblTitle);

        var lblDescription = Gtk.Label.New("");
        lblDescription.SetXalign(0);
        lblDescription.SetCssClasses(["dim-label"]);
        vbox.Append(lblDescription);

        var checkmark = Gtk.Image.New();
        checkmark.SetFromIconName("object-select-symbolic");
        checkmark.SetVisible(false);
        hbox.Append(checkmark);

        listItem!.SetChild(hbox);
    }

    private void OnBindListItem(Gtk.SignalListItemFactory sender, Gtk.SignalListItemFactory.BindSignalArgs args)
    {
        var listItem = args.Object as Gtk.ListItem;

        var stringHolder = listItem!.GetItem() as StringHolder;
        if (stringHolder is null) return;

        var hbox = listItem.GetChild() as Gtk.Box;
        if (hbox is null) return;

        var image = hbox.GetFirstChild() as Gtk.Image;
        image?.SetFromIconName(stringHolder.Icon);

        var vbox = image?.GetNextSibling() as Gtk.Box;
        if (vbox is null) return;

        var title = vbox.GetFirstChild() as Gtk.Label;
        title?.SetText(stringHolder.Title);
        var description = title?.GetNextSibling() as Gtk.Label;
        description?.SetText(stringHolder.Description);

        Gtk.DropDown.SelectedPropertyDefinition.Notify(_dropDown, (_, _) =>
        {
            OnSelectedItemChanged(listItem);
        });

        listItem.SetData("connection", IntPtr.Zero);
        OnSelectedItemChanged(listItem);
    }

Running the application will display following

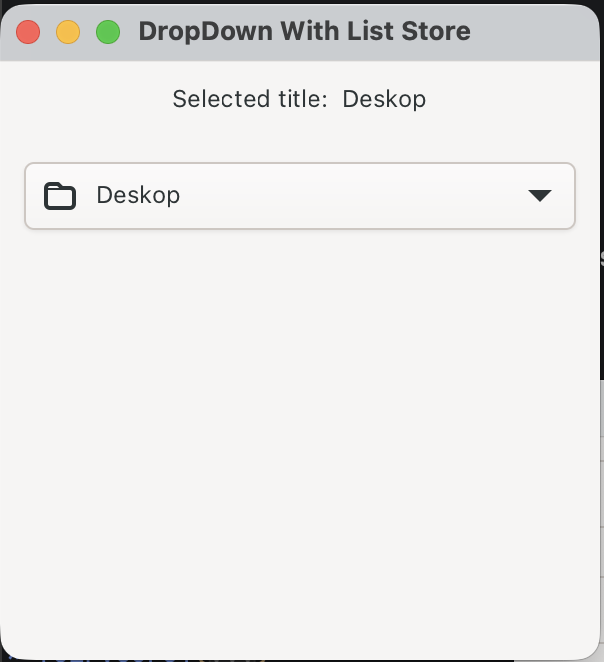

Complex DropDown with ListStore

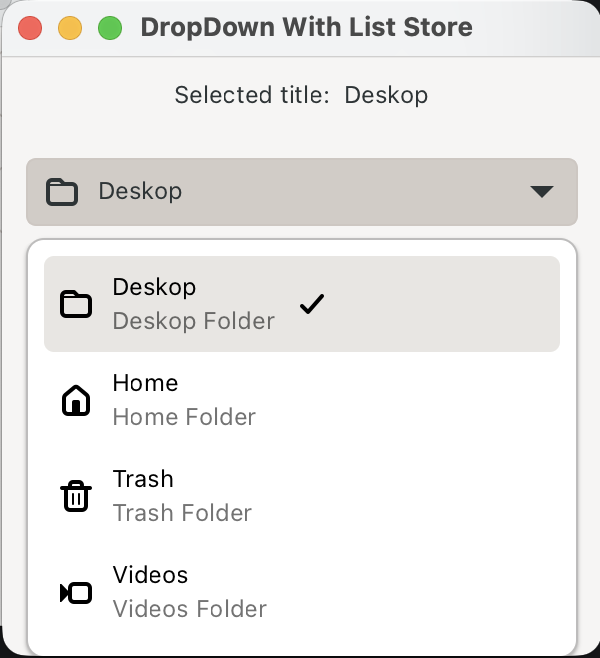

Complex DropDown with ListStore Selected

Source

Source code for the demo application is hosted on GitHub in gtk4-dotnet-drop-down repository.
